GU-R48
+ View Specification
GU-R60
+ View Specification
GU-R72
+ View Specification
Undercounter Solid Door Refrigerators
GU-R48 / GU-R60 / GU-R72

> Stainless Steel Exterior & Interior

>Side Mounted Condensing Unit

> Digital Temperature Control and LED Indicator

> Ergonomically Recessed Door Handle
> Foamed in place with high density  Polyurethane
    insulation walls

> Self-closing Door

> Automatic Defrost System
> BLDC Fan Motors for Evaporator and Condenser

> Stainless Steel Condensate Drain Pan with Heater










Model Capacity Dimension*
(W x D x H)(inch)
Refrigerant Comp. Amp.

Weight (lb)
Net / Crated

GU-R48 10 cu.ft. 47 x 30 x 34 R-134a 1/3 HP 4.5 A 143 / 165 lbs.
GU-R60 14 cu.ft. 59 x 30 x 34 R-134a 1/3 HP 4.5 A 176 / 198 lbs.
GU-R72 17 cu.ft. 71 x 30 x 34 R-404a 1/3 HP 4.5 A 198 / 220 lbs.
*Power(V-Hz-Ph): 115-60-1   *Height includes casters. *Specifications subject to change without notice.

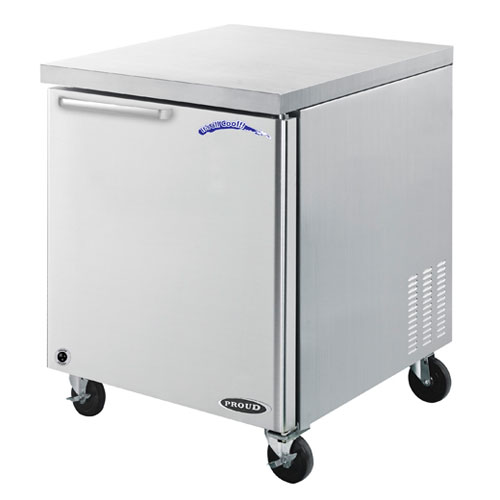

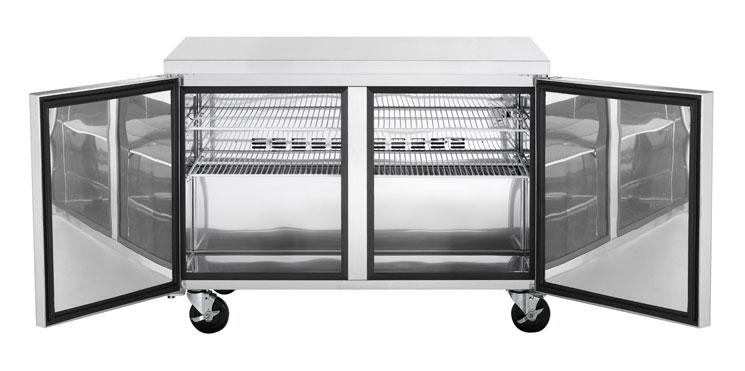

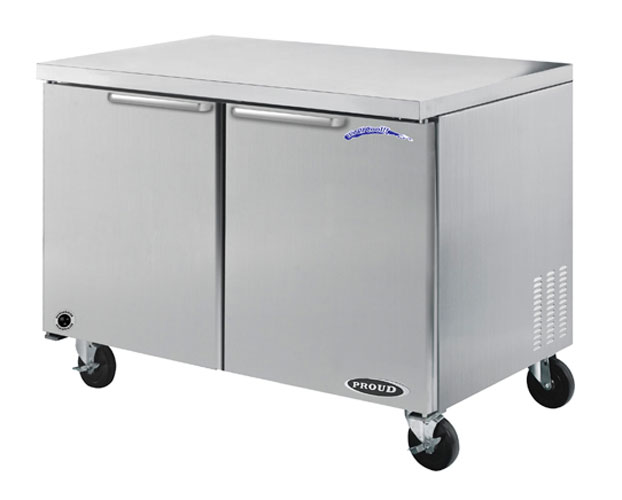

PU-R28 PU-R48
+ View Larger + View Larger
PU-R60
+ View Larger

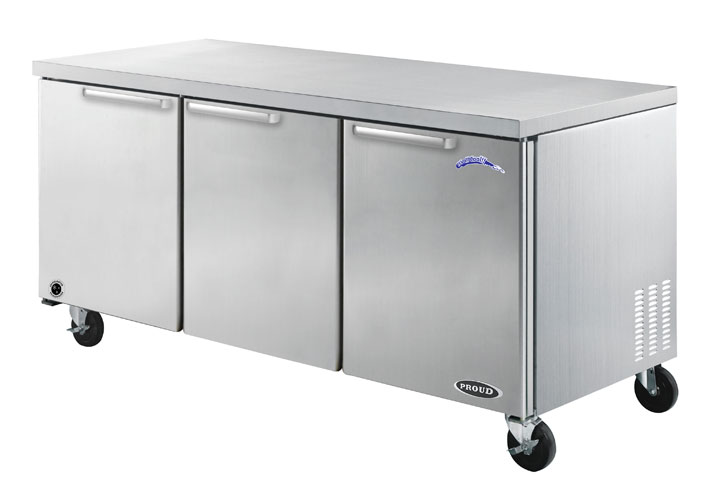

PU-R72
+ View Larger
Undercounter Refrigerators
PU-R28 / PU-R48 / PU-R60 / PU-R72

> Refrigeration System

  •     Temperature control 30˚F to 44˚F
  •     Self-Contained System
  •     CFC Free Refrigerant
  •     Bottom Mount Compressor
  •     Compressor Made by TECUMSEH, SAMSUNG
  •     Polyurethane Foamed with High-Density Insulation
  •     High Efficient Fin on Tube Condenser and Evaporator
  •     Energy Saving Forced-Air Cooling System

> Exterior & Door

  •     Durable Stainless Steel (Galvanized Steel Back)
  •     Elegant Rounded Corner Door Design
  •     Self-Closing Door
  •     5” Swivel Castors with Front Locks

> Interior

  •     Durable Stainless Steel
  •     Magnetic Door Gasket
  •     Heavy Duty & Adjustable PE Coated Wire Shelves
  •     Thermometer Installed
Model Capacity Dimension*(W x D x H) Refrigerant Comp. Amp. Cord Length No. of Shelves Weight
PU-R28 7 cu.ft. 27 1/2 x 30 x 35 3/4 R134a 1/5 HP 3.2A 8 3/5 ft. 2 185 lbs.
PU-R48 12 cu.ft. 48 1/4 x 30 x 35 3/4 R134a 1/5 HP 7.9A 8 3/5 ft. 4 264 lbs.
PU-R60 16 cu.ft. 60 1/3 x 30 x 35 3/4 R134a 3/8 HP 7.9A 8 3/5 ft. 4 309 lbs.
PU-R72 19 cu.ft. 72 2/5 x 30 x 35 3/4 R134a 3/8 HP 8.1A 8 3/5 ft. 6 353 lbs.
AC 115V / 60Hz *Height includes the Castors
