GU-F48
+ View Specification
GU-F60
+ View Specification
Undercounter Solid Door Freezers
GU-F48 / GU-F60

> Stainless Steel Exterior & Interior

>Side Mounted Condensing Unit

> Digital Temperature Control and LED Indicator

> Ergonomically Recessed Door Handle
> Foamed in place with high density  Polyurethane
    insulation walls

> Self-closing Door

> Automatic Defrost System
> BLDC Fan Motors for Evaporator and Condenser

> Stainless Steel Condensate Drain Pan with Heater





Model Capacity Dimension*
(W x D x H)(inch)
Refrigerant Comp. Amp.

Weight (lb)
Net / Crated

GU-F48 10 cu.ft. 47 x 30 x 34 R-134a 1/3 HP 4.5 A 143 / 165 lbs.
GU-F60 14 cu.ft. 59 x 30 x 34 R-404a 3/4 HP 7 A 176 / 198 lbs.
*Power(V-Hz-Ph): 115-60-1   *Height includes casters. *Specifications subject to change without notice.

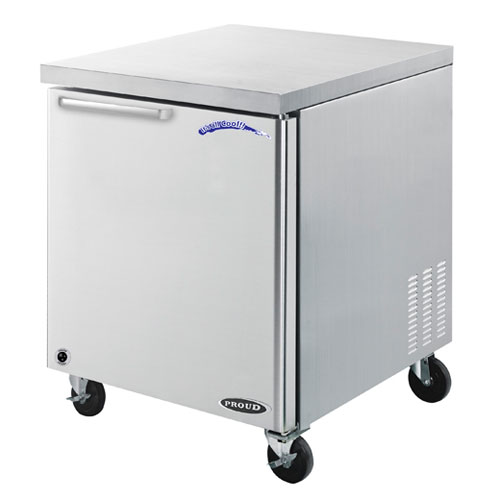

PU-F28 PU-F48
+ View Larger + View Larger

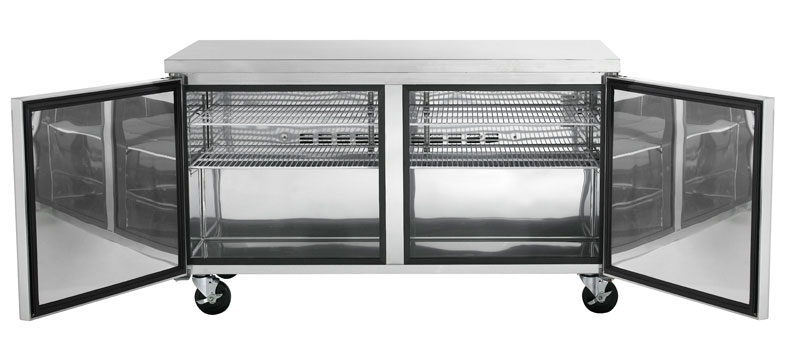

PU-F60
+ View Larger
PU-F72
+ View Larger
Undercounter Freezers
PU-F28 / PU-F48 / PU-F60 / PU-F72

> Refrigeration System

  •     Temperature control -11˚F to -1˚F
  •     Self-Contained System
  •     CFC Free Refrigerant
  •     Bottom Mount Compressor
  •     Compressor Made by TECUMSEH, SAMSUNG
  •     Polyurethane Foamed with High-Density Insulation
  •     High Efficient Fin on Tube Condenser and Evaporator
  •     Energy Saving Forced-Air Cooling System

> Exterior & Door

  •     Durable Stainless Steel (Galvanized Steel Back)
  •     Elegant Rounded Corner Door Design
  •     Self-Closing Door
  •     5” Swivel Castors with Front Locks

> Interior

  •     Durable Stainless Steel
  •     Magnetic Door Gasket
  •     Heavy Duty & Adjustable PE Coated Wire Shelves
  •     Thermometer Installed


Model Capacity Dimension*(W x D x H) Refrigerant Comp. Amp. Cord Length No. of Shelves Weight
PU-F28 7 cu.ft. 27 1/2 x 30 x 35 3/4 R134a 3/8 HP 8.3A 8 3/5 ft. 2 194 lbs.
PU-F48 12 cu.ft. 48 1/4 x 30 x 35 3/4 R404a 1/2 HP 8.9A 8 3/5 ft. 4 282 lbs.
PU-F60 16 cu.ft. 60 1/3 x 30 x 35 3/4 R404a 1/2 HP 8.9A 8 3/5 ft. 4 326 lbs.
PU-F72 19 cu.ft. 72 2/5 x 30 x 35 3/4 R404a 3/5 HP 8.9A 8 3/5 ft. 6 370 lbs.
AC 115V / 60Hz *Height includes the Castors
